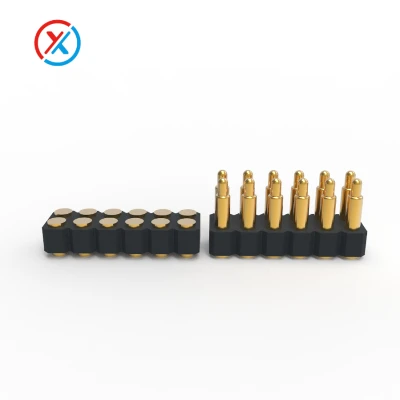

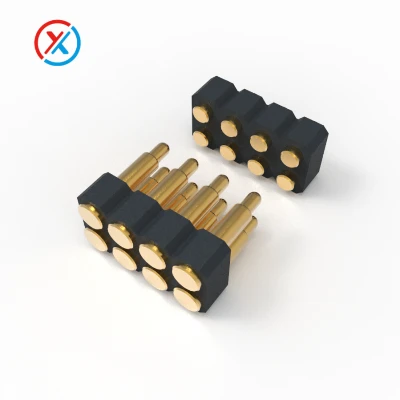

Atagey-reliability pogo pin contact padswalay hard gold plating tan eksakton panaggawa. Maong parad wearable-device charging interfaces, medical diagnostic equipments, industrial test fixtures, tan board-to-board interconnects- ya onsusuportad saray proyekto manlapud prototyping anggad mass production.

AkinPogo Pin Contact PadSay Desinyo so Mandetermina ed Inkamapanmatalkan na Sistema

Maslak ya inhenyero et manpopokus ed mismon pogo pin legan ya ipapasen da so mating contact pad bilang segundaryon konsiderasyon. Diad tua, dia so mabetbet a nagagawaan na saray inkagba.

Diad apalabas ya 15 taon, aminpiga min naobserbaan so parehon paraan na inkagba na dakel a proyekto:

Saray contact pad ya melag a tuloy pian naakomodar so mechanical misalignment odino enclosure tolerances.

Saray abeban kalidad na tapew ya pinili pian nabawasan so gastos ed saray produkto ya iilaloan ya makaanos ed 50,000 a siklo na panag-asawa.

Direktan copper-plated pad designs ya uusaren parad high-current ya aplikasyon ya ag-ikonsidera so itatagey na temperatura tan epekto na petang.

Anggapo ed sarayan isyu so komplikado. Say angat et say panggawa na suston desisyon ed desinyo antis ya nagawa so unonan prototype, imbes ya salien ya ipetek iray problema diad saginonor. Diad saya et dakel a proyekto so walaan na ag nakaukolan iran atraso tan gastos.

Sayan pahina et mangisusumaryo ed saray naaralan tayo ed sarayan proyekto, ya mansaklaw ed sukat na contact pad, panagpili na plating, kaplesan ya -carrying capability, tan saray giya ed layout.

Antoy Makagawa na Napanmatalkan ya Pogo Pin Contact Pad?

Say inkamatoor et mandedepende ed taloran mankakasakey a bengatla:inkapara na makina, kemikal na tapew, tan thermal margin. Say pangi-optimize ed sakey labat legan ya ag-iimanoen so arum et nayarin manresulta ed sakey a desinyo ya ag-onlabas ed testing balet ta ag-ontalona ed totoon pangusar ed mundo.

Mekanikal ya Gagawaen: Puersa na Kontak tan Panagbiahe

Say malet ya abeban resistensya ed pidedeneng et mankaukolan na agmanguman a puersa na pidedeneng ed interon stroke na panag-ipit. Saray estandarten desinyo na pogo pin et kaslakan ya mangiiter30-150 gf na puersa na pankontak(depende ed diametro na pin tan say biahe to), ya say resistensya na kontak et kaslakanabeba nen 25 mΩ.

Say importantin punto et say resistensya ed pitongtong et ag-onkupas ya linear. Imbes, onkukurang itan a maong ed sampot na kurba na puersa. Saray desinyo ya mankikimey ya asingger ed sankaabebaan ya limitasyon na kompresyon et sensitibo ed panaggawa tan panagtipon.

Parad saray aplikasyon ya atagey so siklo da-singa saray ICT test fixtures odino saray charging dock ya aka-rate paradmasulok ya 20,000 ya siklo na panag-asawa-a wiping-contact designso mabetbet a mas labay. Say relatibon sliding motion et ontulong pian naekal iray surface oxides legan na kada mating cycle, ya manresulta ed mas andukey a bilay nen say puron compressive contact interface.

Surface chemistry: plating stack selection

Say tapew na pad tan say nguro na pin plunger et manporma na electrochemical pair. No ag-ira mipara ed - hard gold pin ed ENIG pad, alimbawa say - et mamapeles ed pakasulong ed mas anlemek a tapew tan mamawala na debris ya mamaaligwas ed resistensya legay ilalabas na panaon.

Say estandarten plating stack mi parad saray contact pad et manguusar na nickel diffusion barrier (3-5 μm) ed silong na electrolytic hard gold (0.3-0.8 μm). Say nikel et mangaamper ed iyalis na balitok ed copper substrate; say malet a balitok so mangiiter na resistensya ed pakasulong. Diad silong na accelerated life testing unong ed IEC 60512-6-4, say pandurumaan na resistensya et mansiansian abeba nen 5% anggad 10,000 a siklo parad saray estandarten wearable ya aplikasyon, tan diad loob na 1,00,000 a siklo parad saray high-endurance fixture builds - saraya so nanduruman produkto ya walaan na nanduruman detalye, aliwan saksakey a range.

Thermal: kapasidad na kaplesan tan derating

Say sakey a well-designed contact pad ed 2 oz ya gansa et nayarin mangawit na 3-5 A ya tuloytuloy ya walay itagey na temperatura ya kulang na 30℃ed 25℃ya kaliberliber. Balet say temperatura ed kaliberliber et mas importante nen say ipapasen na karaklan ya datasheets:

Parad saray wearable charging ya aplikasyon ya man-drawing na masulok ya 5 A, saray parallel pad configurations so mangibunog na load tan mamawas ed per-pad thermal stress. Manggagawa kami na thermal simulation legan na DFM review ed antokaman ya desinyo ya masulok ya 3 A kada pad.

PCB Pogo Pin Pad Layout: Saray Ganggan ed Sukat tan Espasyo

Say kabaleg na pogo pin landing pad so mandetermina no kasin say pin et makagawa na napanmatalkan ya kontak ed interon tolerance stack na abung yo, panaggawa na PCB, tan mechanical alignment system. Say ag-inkabaleg et pansengegan na ag-ontutundan pidedeneng; say sobran kabaleg et manbasura na espasyo ed board tan mamawala na problema ed integridad na signal ed makapal iran layout.

Saray nirekomendan sukat na pad

Say rekomendasyon ed pad diameter et mankabaliksan na ±0.1 mm ya PCB ya panaggawa na tolerance tan say kaslakan ya mechanical float ed snap-fit odino magnetic-alignment housing. No say abung yo et manguusar na precision alignment pin o dowel, nayarin paeleten yo irayan tolerances - kontaken kami ed drowing na abung yo tan sikami so mangiter na simbawa.

Saray kagagawa ed panag-layout ya mangamper ed saray kaslakan ya ag-inkayadyari

Saray nisulinek a pad, aliwan adelap a gansa.Say pangikonekta ed saray pad ya direkta ed copper pour ya anggapoy thermal relief et mamapairap ed panagsolda tan nayarin pansengegan na ag-inkaparpareho na petang ya mamabaing ed manipis iran tabla. Mangusar na nisulinek iran pad ya walay vias to parad ikakayat na petang no nakaukolan.

Hard gold parad antokaman ya pad ya masulok ya 5,000 cycles.Say ENIG et nayarin i-solder tan epektibo ed gastos balet mas maples ya onkapuy no walay mekanikal ya kontak. Say nickel layer ya ipaparungtal na ENIG kayari na inkaandi na balitok et mas malet nen say mismon balitok - ondarakel so contact resistance tan magmaliw ya ag naisip. Parad saray charging contact odino test fixtures, iter so electrolytic hard gold diad yugtan na panaggawa na board.

Saray Keep-out zones et mas importante ed atagey a frequency.Diad DC odino abeban frequency, say 0.3 mm ya keep-out ed baetan na signal-carrying contact pads et magenap parad maslak ya aplikasyon. Diad tagey na 1 GHz, pabalegen so keep-out tan idagdag so ground fill ed baetan na saray pad pian naasikaso so crosstalk. I-flag mo iya ed design package mo tan repasoen mi iya legan na Gerber check.

Diad pangiyan na kaplesan ya -awit iran pad.Parad saray pad ya walaan na masulok ya 2 A, mangiyan na thermal vias ed biek na board odino diad ground/power plane. Say sakey a 0.3 mm ya via et mangawit na ngalngalin 0.5 A - parad 3 A pad, manplano parad ag-onkulang ed 6-8 vias ya akatipon ed loob na pad footprint.

Say pampili na dugan plating parad aplikasyon mo

Say lingon panagpili na plating et ag-onkulang a tampol - onkulang itan ed 3,000 a siklo no say kagawaan et wala lad uma. Nia so paraan pian natunos so plating ed aktual ya uusaren mo.

Electrolytic hard gold

Mas maabig parad: wearable charging contacts, medical device interfaces, high-cycle test fixtures, antokaman ya aplikasyon ya masulok ya 5,000 mating cycles.

Kapal: 0.3-1.0 μm ed tapew na nickel barrier. Mas malet nen say soft gold (Knoop hardness 130–200 HK vs. 60–90 HK parad soft gold), ya direktan mankabaliksan na wear life. Say tradeoff et say solderability - say hard gold et aliwan maabig parad saray lugar ya wave o reflow soldered met.

ENIG (electroless nickel / immersion gold)

Mas maabig parad: mixed-function pads ya kaukolan so solderability tan sagpaminsan ya mechanical contact, low-cycle ya aplikasyon (kulang na 3,000 ya insertions), cost-sensitive ya desinyo ya matalag so pan-charge.

Say immersion gold layer ed ENIG et manipis a tuloy (0.05-0.1 μm) tan onkupas no paulit-ulit ya nakontak. No napatnagan la so nikel, ilaloan ya ondarakel so resistensya na kontak. Parad sakey ya smartwatch ya inagew-agew ya mankarga, saya so problema ed loob na sakey taon ya pangusar. Parad barcode scanner ya on-dock ya maminsan ed kada shift, naabobonan itan.

ENEPIG

Mas maabig parad: saray aplikasyon ya mankaukolan na napanmatalkan ya mekanikal ya kontak tan maong ya solderability ed parehon pad - ya kaslakan ed saray medikal ya kagawaan ya say pad et manseserbi na charging tan test-point function. Mas mabli nen say ENIG, sulit no say pad et kaukolan ya doble so kimey to.

Pilak ya panag-apiger

Mas maabig parad: gastos-sensitibo iran DC power contacts ed aliwan-mairap iran kaliberliber, RF contacts ya importante so epekto na konduktibidad na baog. Say pilak et naderal ed ambetel odino sulfur- ya kaliberliber, ya mamaaligwas ed resistensya na kontak. Ag-irerekomenda parad saray aplikasyon ed paway odino medikal.

PCB Contact Pad Current Handling: Desinyo parad Thermal Margin

Say I2R heating model et simpli: say power dissipated et mipara ed current squared times resistance. Parad 25 mΩ contact pad ya walay 3 A, satan et 225 mW - ya akasentro ed melag a tuloy a lugar. Say thermal path manlapud satan a pad ya anggad kaliberliber so mandetermina no kasin say itatagey na temperatura et mansiansia ed loob na spec.

Saray bengatla ya mangaapekta ed kapasidad na kaplesan

Timbang na gansa.1 oz ya gansa (35 μm) so estandarte; 2 oz (70 μm) et ngalngalin mandoble ed cross-sectional area tan mamapaabeba na resistensya na ~50%. Parad saray pad ya mas atagey nen 3 A, mangiter na 2 oz ya gansa odino mangusar na dakel ya pad ya mankakasakey.

Pad isolation vs. copper pour connection.Say nisulinek ya pad ya walay vias to et mas maong ya mamaandi na petang nen say pad ya akakonekta ed baleg ya copper pour, lapud say pour et onkiwas labat bilang heat sink no walay thermal path to ya mamaarap ed kaliberliber. Diad multi-layer board ya walay internal planes to, say pangikonekta ed saray current-carrying pads ed power plane panamegley na thermal vias so sankaepektiboan ya paraan na panangasikaso ed petang.

Kabaleg na pad.Saray angkakabaleg a pad so mangikakayat na petang balet ta mamaaligwas met ed inductance tan capacitance - ya matukoy ed saray aplikasyon na RF. Parad DC charging, sukaten so pad ed kaplesan ya kakaukolanen, aliwan diad sankaabebaan ya onkana ed pin.

No say Pogo Pin Contact Pad et aliwan dugan solusyon

Irerekomenda mi ray spring contact pads parad nanduruman aplikasyon, balet wala ray kaso ya mas maong so sananey ya paraan - tan mas labay min ibaga ed sika natan nen say kayari na pakaputot na tooling.

Daiset so bilang na insert, mas labay so permanentin koneksion.No say koneksyon et nagawa ya maminsan legan na panag-assemble tan aglan balot naderal lamet, say solder joint odino press-fit ya koneksyon et mas napanmatalkan tan mas abeba so gastos. Saray spring contacts et mangarum na balor no say paulit-ulit ya mating cycles et sakey a kakaukolanen ed desinyo.

Saray kaliberliber ya walay atagey ya yegyeg ya anggapoy mekanikal ya panagkandado.Saray Pogo pin contacts et mansiansian koneksyon panamegley na spring force labat. Diad tuloytuloy ya atagey ya -vibration ya kaliberliber (powertrain na luluganan, heavy industrial machinery), say spring et nayarin naandi so kontak to no walay vibration anggano singa aka-assemble so housing. Diad sarayan kaso, mangiter na locking connectors ya walay secondary retention.

Kontaminasyon-ambelat iran kaliberliber ya anggapoy IP sealing.Say spring contact pad ya nipaarap ed saray pluido ed panagputot, kemikal ed agrikultura, odino dabok na panagmina ya anggapoy suston panag-seal et ag-onkontamina antokaman so kalidad na gold plating. No say environmental sealing et ag nayarin idesinyo ed kaliberliber na contact interface, pilien so sealed connector system imbes.

Extremely high current density (>10 A kada kontak).Diad tagey na 10 A ed sakey a contact, say thermal management et magmaliw ya mairap ed saray estandarten spring contact geometries. Mas matukoy so solusyon na bus bar odino high-current connector.

Saray Alimbawa na Aplikasyon

Saray nayarin isulong ya charging contacts

Say smartwatch tan fitness tracker charging docks so sankatageyan ya aplikasyon parad spring contact pads. Saray limitasyon ed desinyo et malet: say lugar na pad et melag, say bilang na insertion et atagey (say sakey ya inagew-agew-mangusar na smartwatch docks et 365 beses ed sakey taon), tan saray kakaukolanen ed waterproofing (IPX7 o IP68) so mansebel no panon ya iyuksoy so sealing ed kaliberliber na contact.

Nankimey kami ed saray desinyo na charging contact ed nanduruman wearable platform. Say sankabalegan ya napaliisan ya pakaandi et say ENIG pads ed saray produkton ginawa parad inagew-agew ya pangusar ed dakel a taon. Say pangibaga na hard gold ed 0.5 μm et mangarum na pigaran sentimo kada tabla; say pangisaliwan na saray charging contact ed sakey a warranty return et mas baleg so gastos.

Medical in-vitro diagnostics

Saray IVD devices et mankaukolan na biocompatibility compliance parad antokaman a tapew ya nayarin makasabi ed saray biological sample odino lima na saray clinical staff. Saray contact pad ed sarayan aplikasyon et kaslakan ya uusaren ed saray interface na test fixture, aliwan saray patient-contact surfaces, balet saray kakaukolanen ed dokumentasyon et makabkabaliksan ni. Mangiiter kami na saray material data sheets, RoHS/REACH compliance documentation, tan traceability records bilang estandarte parad saray medikal a kustomer.

ICT tan FCT test fixtures

Saray high-density SMT test point pads ed in-circuit tan functional test fixtures et mas dakel so siklo da nen say antokaman ya aplikasyon na produkto - say kaslakan ya ICT fixture et nayarin makanengneng na 1,000 board tests kada agew. Diad ontan a kapeles, say 100,000-cycle rating et naabot ed loob na apatiran bulan. Parad sarayan aplikasyon, iter mi so maximum-hardness ya gold plating tan irerekomenda mi ray eskedyul na panmintina na fixture base ed aktual ya bilang na siklo imbes ya diad oras na kalendaryo.

Saray koneksion na automotive board-ed-board

Saray koneksyon ed baetan na ECUs, sensor modules, tan power distribution boards et mas manguusar na spring contact interfaces imbes ya tradisyonal iran wire harness connectors. Sarayan aplikasyon et nepeg ya makaabot ed AEC-Q200 component qualification tan sakop na thermal cycling (-40℃anggad +125℃), vibration unong ed ISO 16750, tan humidity exposure unong ed ISO 6270.

Proseso na Custom Design

• Saray estandarten proyekto: Saray drowing na desinyo et niiter ed loob na sakey ya agew na trabaho
• Espisyal iran istruktura: Saray drowing na desinyo et niiter ed loob na 1-3 agew na negosyo

Saray Iter

1. 2D ya drowing tan detalye
2. 3D models
3. Saray rekomendasyon ed materyales tan plating
4. Inaon
5. Suporta ed prototype: Panaggawa na custom mold odino panaggawa na sample na prototype.

Mabetbet ya Itepet

Antoy suston sukat na pad parad pogo pin contact?

Say diametro na pad et nepeg ya say diametro na pin plunger tan 0.5-0.8 mm pian naala so tolerance ed panaggawa na PCB tan say mechanical alignment float. Parad 1.0 mm ya pin, kabaliksan na satan so 1.5-1.8 mm ya pad. No say abung yo et manguusar na precision alignment features (dowel pins, molded guides), nayarin i-tighten yo iya pian +0.3 mm - share so housing tolerances yo tan sikami so mangiter na simbawa. Say ag-inkabaleg na pad so sankabaloan ya sengegan na intermittent contact ed saray prototype build.

Kapigan ko nepeg ya usaren so hard gold imbes ya ENIG?

No say produkto yo et na-mate tan ag-na-mate na masulok ya 3,000 a danay ed loob na serbisyo to, i-specify so electrolytic hard gold. Parad sakey ya smartwatch ya inagew-agew ya kargaen, satan ya threshold et naabot ed loob na waloy taon - diad loob na bilay na produkto. Parad sakey a test fixture, naabot itan ed loob na pigaran agew. Say ENIG et matukoy parad saray aplikasyon ya abeban -siklo odino parad saray pad ya manunan kaukolan ya na-solder imbes ya na-contact ed mekanikal.

Panon karakel so kuryente ya nayarin awiten na sakey a contact pad?

Say suston inkadesinyo na pad ed 2 oz a gansa ed sakey a kaliberliber ya walay dagem to et nayarin mangawit na 3-5 A ya ontagey so temperatura ed leksab na 30℃ed 25℃ya kaliberliber. Ibawas ed 50-60% ed 85℃ya kaliberliber. Parad saray karga ya mas atagey nen 5 A, irerekomenda mi ray parallel pad imbes ya saksakey ya oversized pad - mas parepareho so pangibunog tod electrical tan thermal load, tan nabawasan so sensitivity ed sakey a-point contact failure.

Nayarin usaren irayan contact pad ed saray produkton ag-onlooban na danum?

On, diad suston desinyo na panagselyo ed kaliberliber na contact interface. Say pad a mismo et aliwan say waterproofing element - say housing gasket odino say overmolded seal et ontan. Sinuportaan mi ray IP67 tan IP68 ya desinyo ed amin ya wearable tan industrial ya aplikasyon. Say manunan bengatla et say panseguro ya say tapew na seal et mekanikal ya mipara ed puersa na spring compression; say sobran puersa na panag-ipit et mamapaermen ed saray anlemek a gasket tan nayarin mamakapuy ed selyo.

Antoy sankaabebaan ya distansya ed baetan na saray mankakasakey a pad?

Say sankaabebaan ya keep-out zone ed baetan na saray asingger ya pad et 0.3 mm parad saray pad ya abeba nen 0.8 mm so diametro to, tan 0.5-0.8 mm parad angkakabaleg iran pad. Saraya so manufacturing minimums - parad high-voltage ya aplikasyon odino high-frequency ya signal, pabalegen so espasyo base ed creepage tan clearance requirements odino signal integrity modeling.

Panon kon nabawasan so resistensya na kontak ed sakey a desinyo na produksyon?

Taloran bengatla so mamapakiwas ed resistensya na kontak: say konduktibidad tan kapal na plating, say puersa na kontak, tan say kalinisan na tapew. Say hard gold plating ed 0.5 μm, say contact force ya onsulok ed 80 gf, tan say wiping contact geometry et napanmatalkan ya makadampot na kulang ya 20 mΩ ed produksyon. No mansukat kay mas atagey ya resistensya ed saray production board, nengnengen so pad surface oxidation (saray ENIG board ya aka-store ed loob na masulok ya 6 bulan et walaan na nasukat ya indaak na resistensya) tan i-verify ya say housing mo et makakadampot ed nibaga ya pin compression.

Susuportaan mo kasi ray melag ya batch o prototype ya order?

On. Anggapoy minimum ya order ya kaukolan mi ed prototype stage. Say lead time parad saray standard geometries et 3-5 ya agew na negosyo parad Gerbers tan quotation; say produksyon na prototype board et mandedepende ed fab yo, aliwan sikami. Parad saray custom geometries, kaukolan tayoy sakey simba parad DFM review tan tooling check.

Anto ran sertipikasyon so onaplika ed saray produkto yon contact pad?

Saray estandarten kargamento et ontutumbok ed RoHS Directive 2011/65/EU, tan saray totontonen na REACH SVHC. Say ISO 9001:2015 ya sertipikasyon et mansaklaw ed pasilidad na panaggawa mi. Saray materyales ya data sheet tan test report et naala no kerewen.

Saray Teknikal ya Detalyado ed Sakey a Pannengneng

Say karga et inrepaso na sakey a senior applications engineer ya walay 12 taon ya eksperiensya to ed precision interconnects tan wearable/medical device development. Teknikal ya datos base ed internal testing unong ed IEC 60512-6-4 tan MIL-STD-1344.

Mankerew na rekomendasyon ed inkaalasir na pad- i-share so pin specification, housing drawing, tan saray cycle/current requirements. Mangiter kami na rekomendasyon ed layout tan plating spec ed loob na 3-5 ya agew na trabaho.
